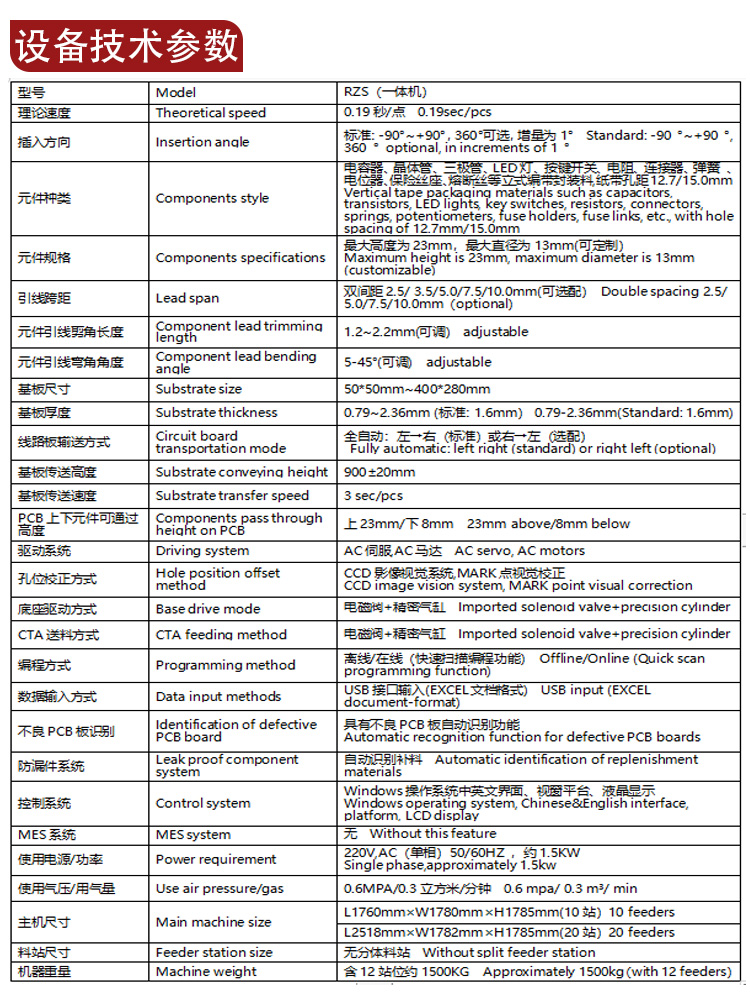

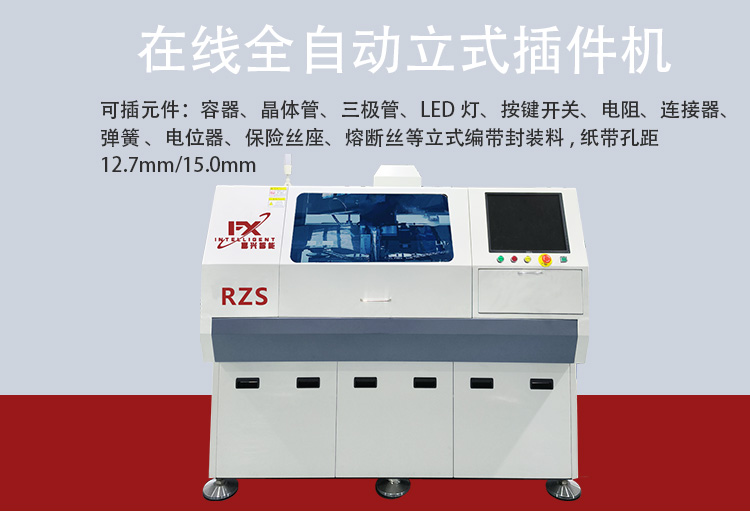

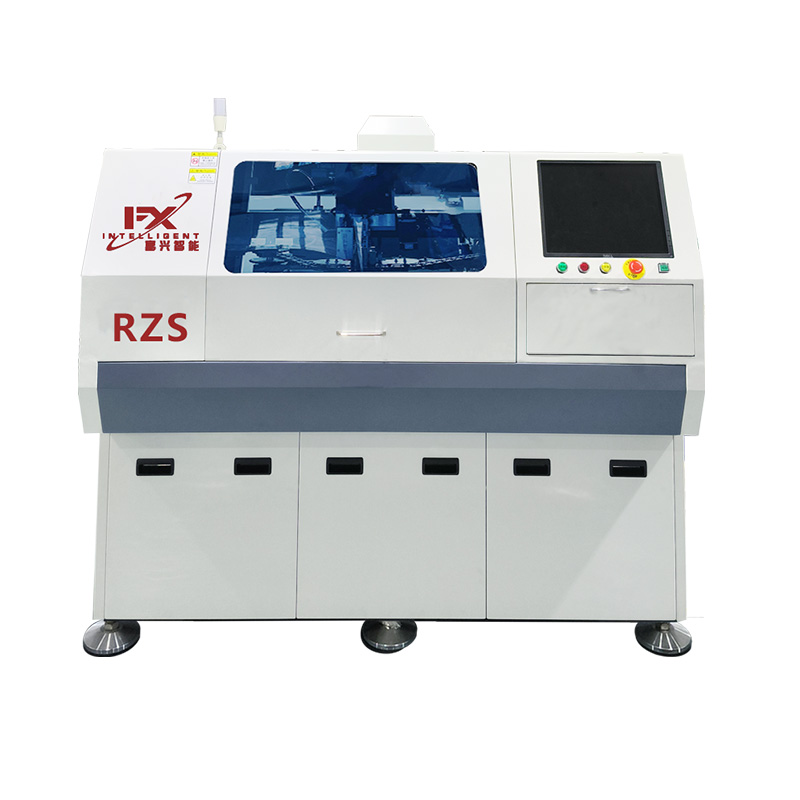

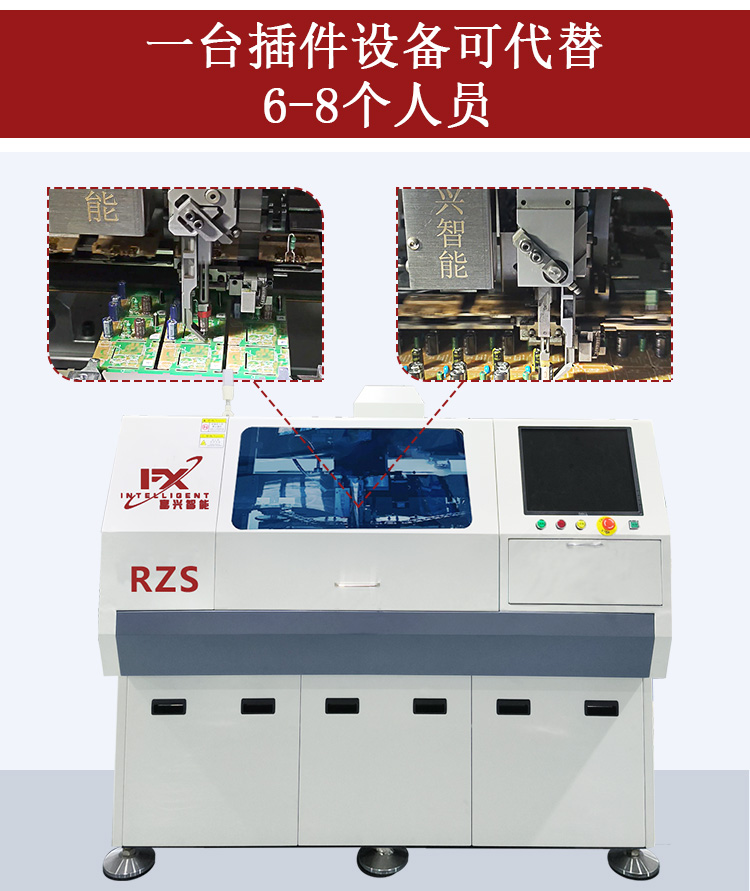

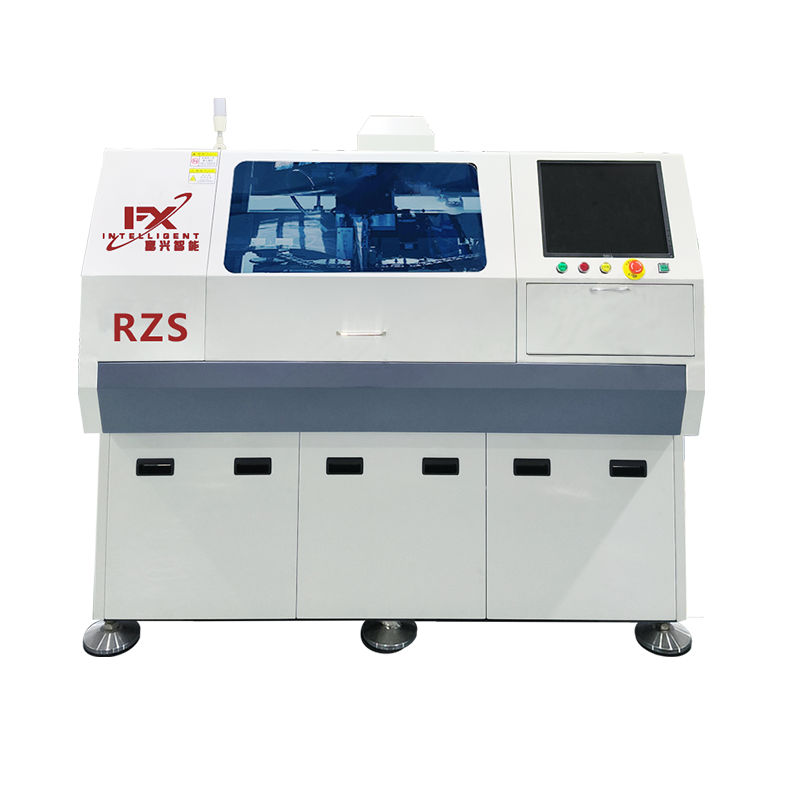

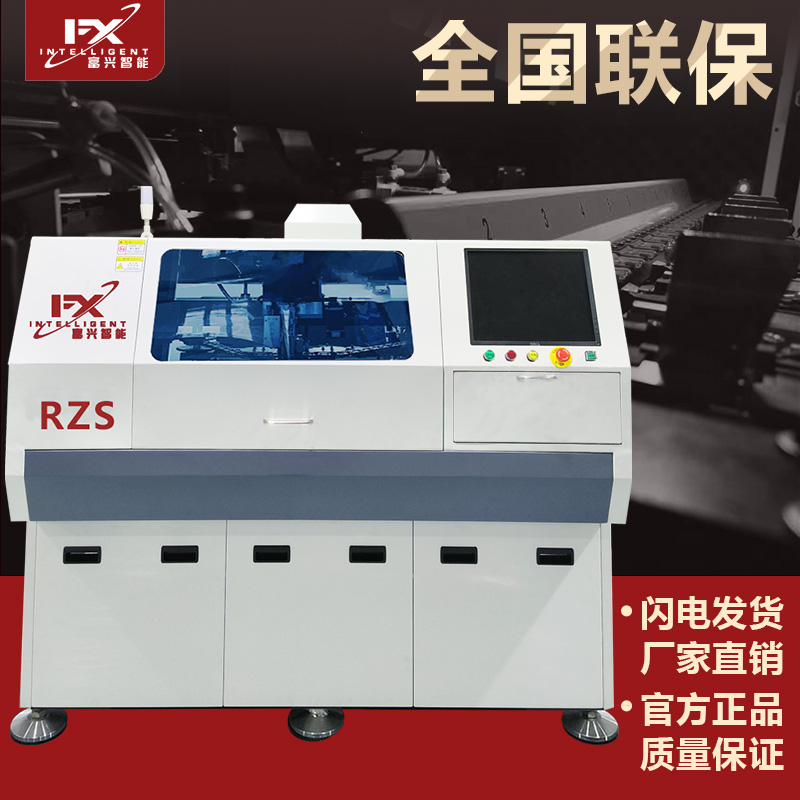

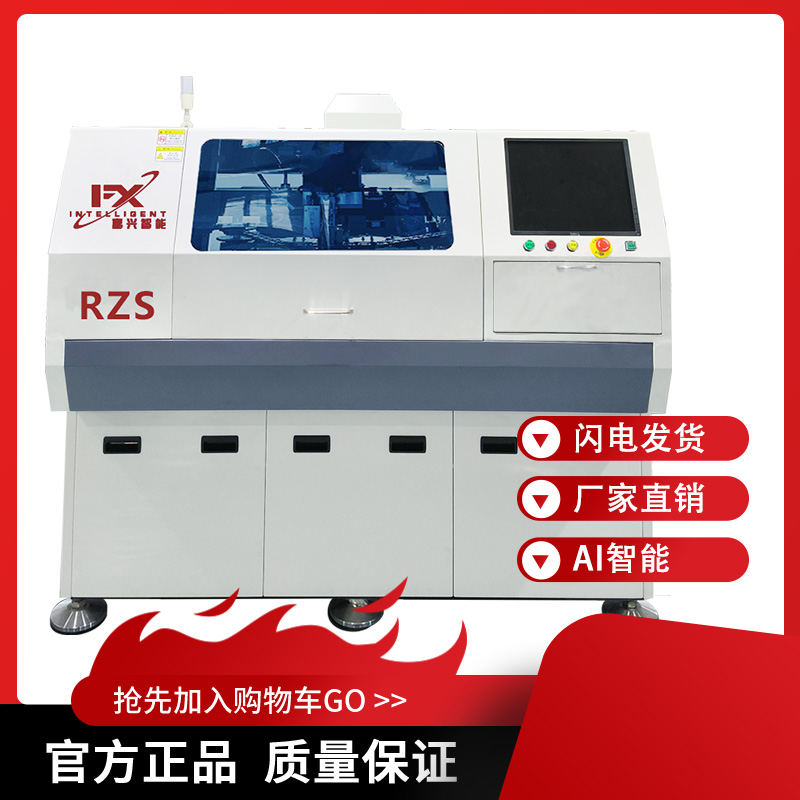

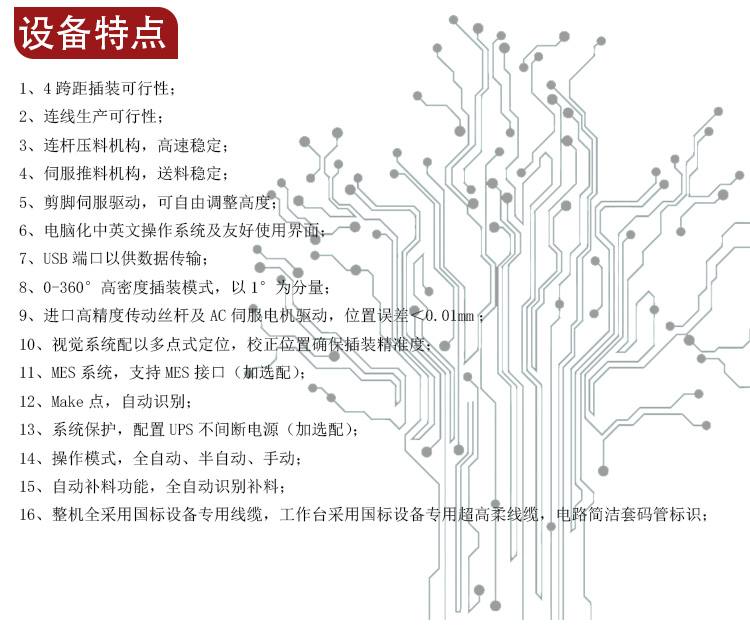

型號 |
Model |
RZS（一體機） |
|
理論速度 |
Theoretical speed |
0.19秒/點 ?0.19sec/pcs |
|
插入方向 |
Insertion angle |
標準：-90°~+90°，360°可選，增量為1° ?Standard: -90 °~+90 °, 360 ° optional, in increments of 1 ° |
|

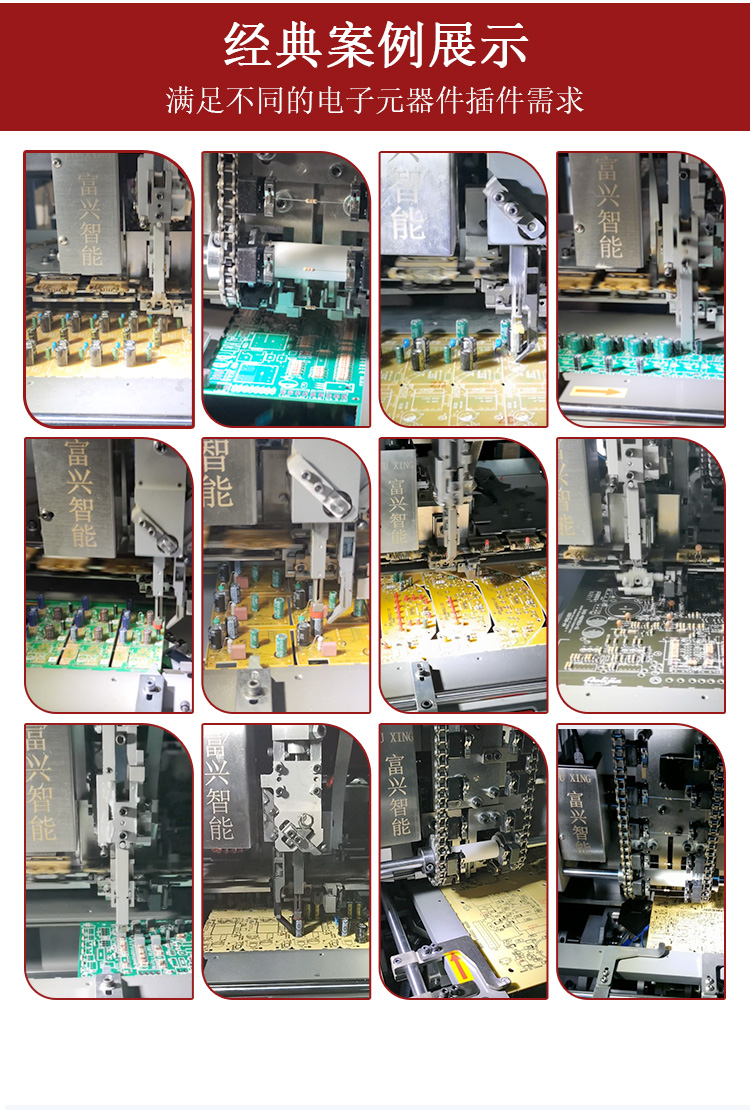

元件種類 |
Components style |
電容器、晶體管、三極管、LED燈、按鍵開關、電阻、連接器、彈簧 、電位器、保險絲座、熔斷絲等立式編帶封裝料,紙帶孔距12.7/15.0mm Vertical tape packaging materials such as capacitors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with hole spacing of 12.7mm/15.0mm |
|
元件規格 |
Components specifications |
最大高度為23mm，最大直徑為13mm(可定制） Maximum height is 23mm, maximum diameter is 13mm (customizable) |
|

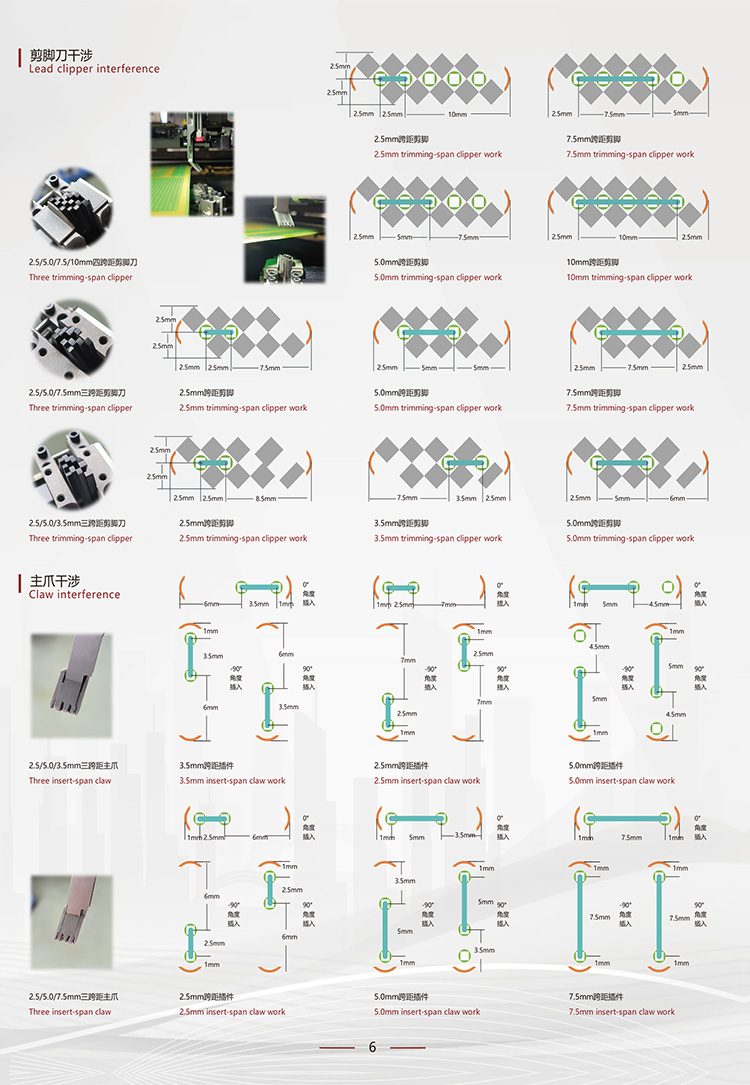

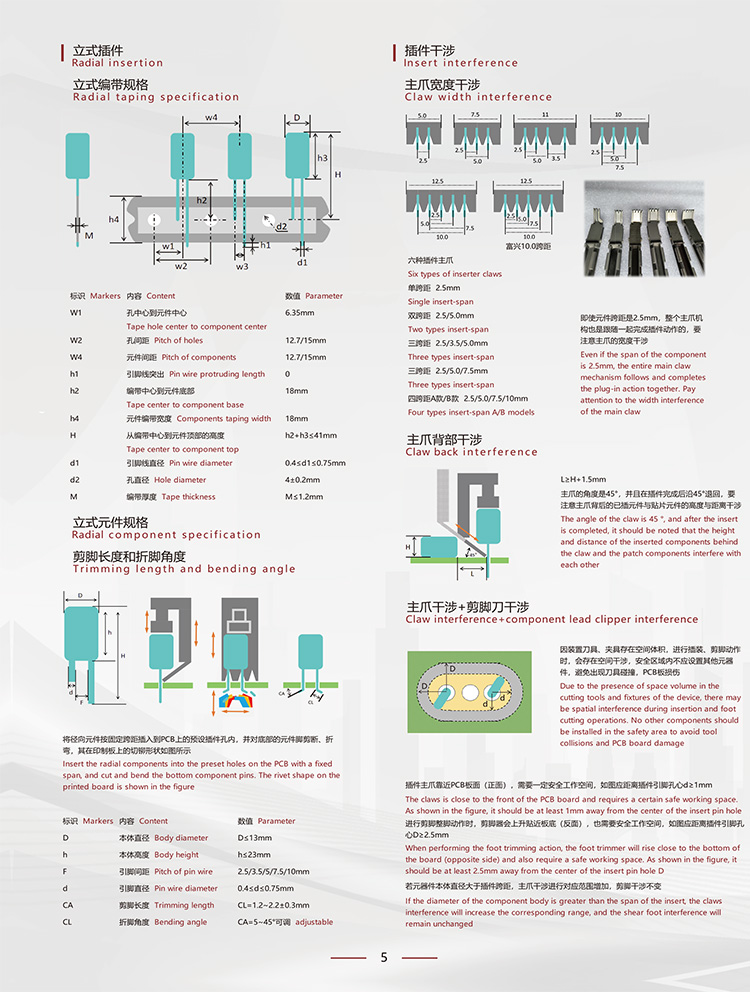

引線跨距 |
Lead span |
雙間距2.5/ 3.5/5.0/7.5/10.0mm(可選配） Double spacing 2.5/ 5.0/7.5/10.0mm（optional） |
|

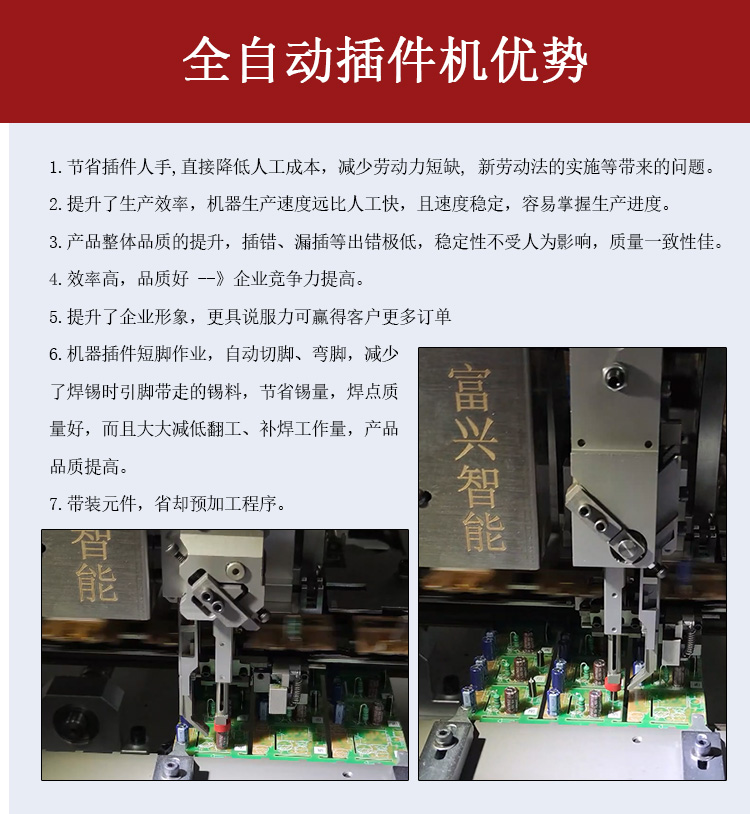

元件引線剪角長度 |
Component lead trimming length |
1.2~2.2mm(可調)??adjustable |
|
元件引線彎角角度 |
Component lead bending angle |
5-45°(可調)??adjustable |
|
基板尺寸 |
Substrate size |
50*50mm~400*280mm |
|
基板厚度 |
Substrate thickness |
0.79~2.36mm (標準：1.6mm） 0.79-2.36mm(Standard: 1.6mm) |
|
線路板輸送方式 |
Circuit board transportation mode |
全自動：左→右（標準）或右→左（選配） ?Fully automatic: left right (standard) or right left (optional) |
|
基板傳送高度 |
Substrate conveying height |
900±20mm |
|
基板傳送速度 |
Substrate transfer speed |
3 sec/pcs |
|
PCB上下元件可通過高度 |
Components pass through height on PCB |
上23mm/下8mm ?23mm above/8mm below |
|
驅動系統 |
Driving system |
AC伺服,AC馬達 ?AC servo, AC motors |
|
孔位校正方式 |
Hole position offset method |
CCD影像視覺系統,MARK點視覺校正 CCD image vision system, MARK point visual correction |
|
底座驅動方式 |
Base drive mode |
電磁閥+精密氣缸 ?Imported solenoid valve+precision cylinder |
|
CTA送料方式 |
CTA feeding method |
電磁閥+精密氣缸 ?Imported solenoid valve+precision cylinder |
|
編程方式 |
Programming method |
離線/在線（快速掃描編程功能） Offline/Online (Quick scan programming function) |
|
數據輸入方式 |
Data input methods |
USB接口輸入(EXCEL文檔格式) ?USB input (EXCEL document-format) |
|
不良PCB板識別 |
Identification of defective |
具有不良PCB板自動識別功能? Automatic recognition function for defective PCB boards |
|
防漏件系統 |
Leak proof component system |
自動識別補料 ?Automatic identification of replenishment materials |
|
控制系統 |
Control system |
Windows操作系統中英文界面、視窗平臺、液晶顯示 ?? Windows operating system, Chinese&English interface, platform, LCD display |
|
MES系統 |
MES system |
無 ?Without this feature |
|
使用電源/功率 |
Power requirement |
220V,AC（單相）50/60HZ ，約1.5KW |
|
使用氣壓/用氣量 |
Use air pressure/gas |
0.6MPA/0.3立方米/分鐘 ?0.6 mpa/ 0.3 m3/ min |
|
主機尺寸 |
Main machine size |
L1760mm×W1780mm×H1785mm(10站）10 feeders |
|
L2518mm×W1782mm×H1785mm(20站）20 feeders |
||
|
料站尺寸 |
Feeder station size |
無分體料站 ?Without split feeder station |
|
機器重量 |
Machine weight |
含12站位約1500KG ?Approximately 1500kg（with 12 feeders） |
